Nice Robus 400 Slide Gate Motor Kit
Shop By Categories
Nice Robus 400 Slide Gate Motor Kit
SKU:
RB400
Nice
$ 925.00
Out of stock
Secure Payment
Details
This model has been discontinued and replaced by the new RBS Robus series.
Nice Robus 400 Slide Gate Motor Kit
For sliding gates weighing up to 400 kg. Electromechanical gear motor with Nice BlueBUS technology. Versions with electromechanical limit switch (RB400)
Features & Benefits:
Compatible for operation with Solemyo and Opera systems.
- User-friendly: the Nice BlueBUS technology, enables to power and control a maximum of seven couples of photocells from the MoonBus series using two wires only.
- Practical: the control unit and PS124 buffer battery (optional) can be connected by means of a simple connector and can be housed directly inside the motor.
- Advanced: RB400 is equipped with a temperature sensor: adapt the motor power to the climatic conditions and at the same time thermal cut-out. A master/slave selection automatically synchronises two motors. This means it is possible to automate 2-leaf sliding gates set opposite each other.
- Intelligent: thanks to the obstacle detection system and automatic programming of the working times. Self-diagnosis by means of a flashing light. 8 programming levels.
- Safe: acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre.
- Sturdy: base and release in pressure die cast with easy to open handle.
- Very quiet: gear motor on bearings.

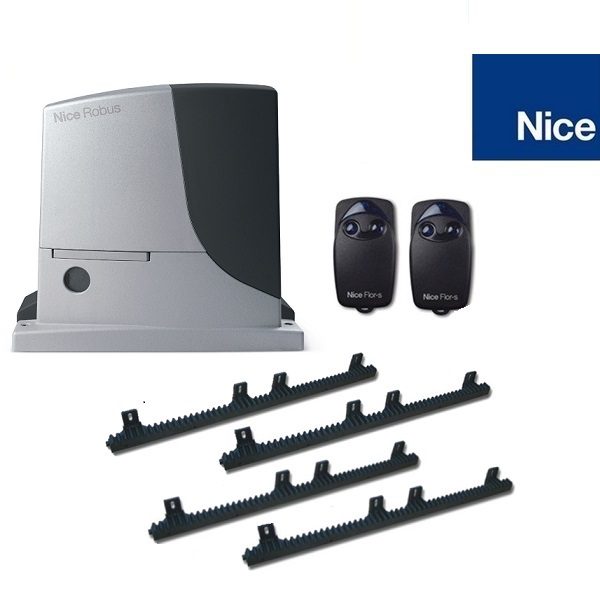

Kit Contains:
- RB400 – 1 irreversible electromechanical gear motor, with incorporated control unit and OXI plug-in receiver which can be used for connections via Nice Bue BUS
- FLOR2R-S – 2x transmitter 433.92Mhz, 2 channel
- 4.0m Nylon Steel-reinforced gear rack
- Additional Nylon Steel-reinforced Gear Rack can be purchased here.
Optional Accessories
– Wi-Fi
– Keypad
Technical Specifications
| Code |
RB400 |
| Electrical data | |
| Power supply (Vac 50 Hz) |
230 |
| Absorption (A) |
1.1 |
| Power (W) |
250 |
| Built-in capacitor (?F) |
– |
| Performance data | |
| Speed (m/s) |
0.34 |
| Force (N) |
400 |
| Work cycle (cycles/hour) |
35 |
| Dimensional and general data | |
| Protection level (IP) |
44 |
| Working temp. ( °C Min/Max) |
-20 ÷ +50 |
| Dimensions (mm) |
330x210x303 h |
| Weight (kg) |
8 |
