Alpha Tubular Cassette Awning Motor WSER50
Referred to as “Cassette Awning” motors, these motors are designed to automatically set their inner limit based on tension. It will also allow you to set the inner limit manually if you require.
When using the auto inner limit setting, the outer limit is set manually using the remote and it will find its own inner stopping position by detecting the resistance as it reaches the fully closed position the first time it is closed. After this the motor will stop in this position after detecting an increased resistance of 25% while moving.
On larger cassette awnings, 25% is sometimes not enough so you can increase this to 50%, 75% or 100% if required. It’s rare to need this adjustment but it’s a good feature to have.
When used with Sun/Wind sensors or Motion sensors, this motor detects a pulse from the sensor issued every 20 minutes. If the Awning is out and does not receive a signal from the sensor for half an hour, it will close itself automatically as a protective measure assuming the sensor has failed or the batteries are flat.
Features:
- Electronic Limit Switch

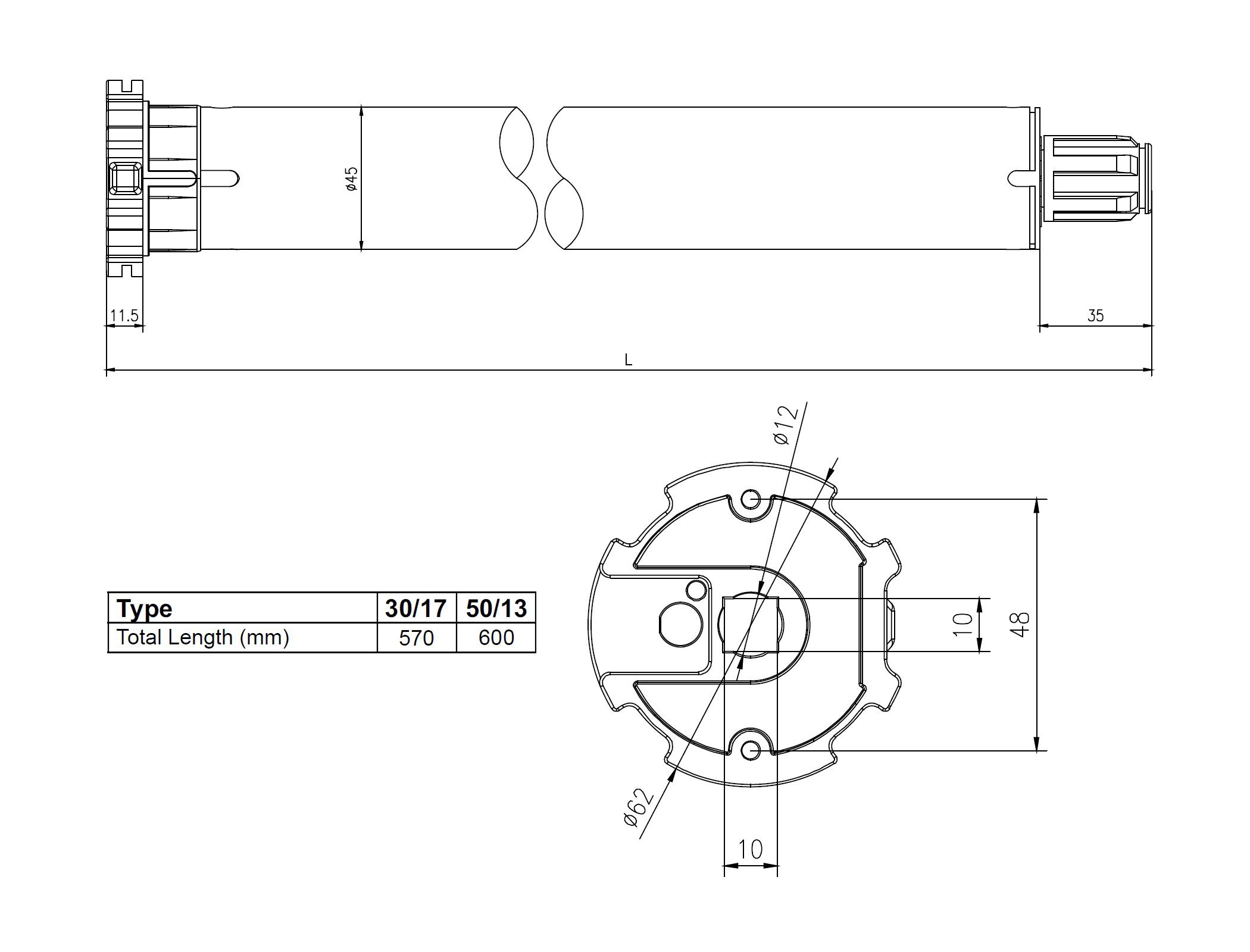

- Built in receiver motor 45mm diameter
- Wireless limit setting
- External antenna
- Folding Arm Motor, Awning
- Remote Control Applicable

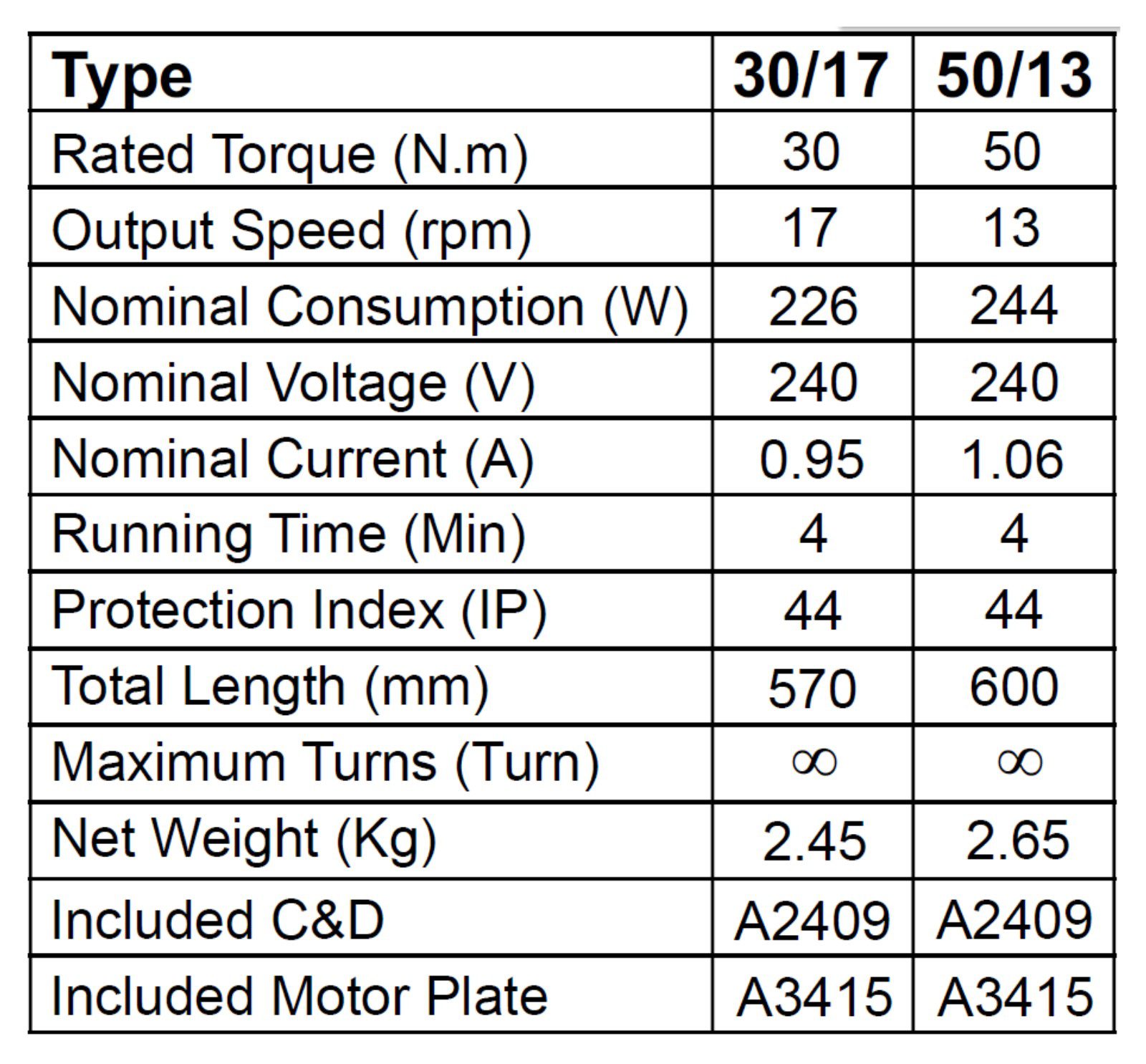

Specifications:
- 1 x Alpha Tubular Cassette Awning Motor WSER50
