Nice WingoKit 2024 Single Motor Only
Shop By Categories
Nice WingoKit 2024 Single Motor Only
SKU:
WGK2024.8003
Nice
$ 625.00
Secure Payment
Details

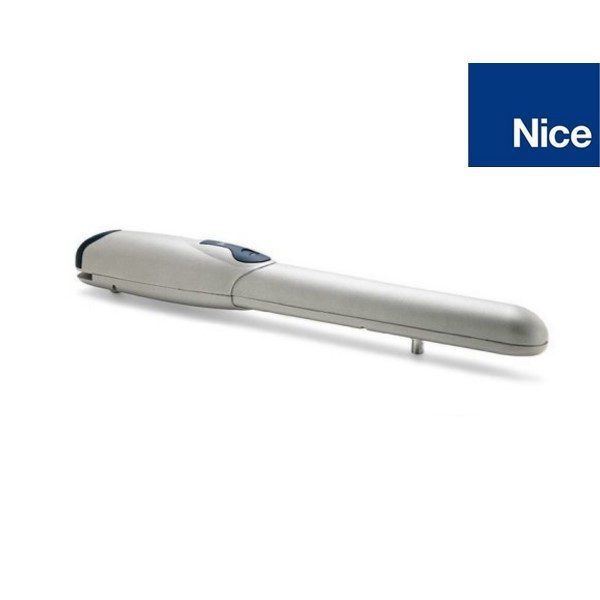

WingoKit 2024 Single Motor Only
For swing gates with leaves up to 2 m, surface mounted. 24 Vdc electro-mechanical gear motor.
Features & Benefits:
- Compatible for operation with Solemyo system.
- Patented layout of the internal components: fewer moving parts means greater reliability and quiet operation.
- Easy to install: after the gear motor has been assembled, all electrical connections are made from above.
- User-friendly release with personalised Nice key or standard lock (optional).Pre-assembled, travel stops PLA13 on opening
- New Moonclever control unit MC424:
- simple programming, by means of a single key
- clutch with anti-crush safety feature automatic memorization of limit switches on opening and closing with self-learning function
- deceleration on opening and closing
- obstacle detection system
- can be linked to the 8.2KOhm resistive sensitive edge;
- Continues to work even during power failures using optional (PS124) batteries that fit inside the control unit.
Includes:
- WG2024 – 1 surface-mounted electromechanical gear motors
Technical Specifications
| Code |
WG2024 |
| Electrical data | |
| Power supply (Vdc) |
24 |
| Absorption (A) |
3.5 |
| Power (W) |
85 |
| Built-in capacitor (?F) |
– |
| Performance data | |
| Speed (m/s) |
0.018 |
| Force (N) |
1500 |
| Work cycle (cycles/hour) |
30 |
| Dimensional and general data | |
| Protection level (IP) |
44 |
| Working temp. ( °C Min/Max) |
-20 ÷ +50 |
| Dimensions (mm) |
770x98x95h |
| Weight (kg) |
6 |
