Ditec NeoS 500 Green Slide Gate Kit
Shop By Categories
Ditec NeoS 500 Green Slide Gate Kit
SKU:
NEOS500G
Ditec
$ 850.00
Available on back-order
Secure Payment
Details
Ditec NeoS 500 Green Slide Gate Kit
The new Ditec NEOS Green consumes less power in standby than regulatory requirements with an active display: the system minimizes power consumption during standby but, thanks to its advanced technology, quickly reactivates as soon as it receives commands via radio or from other accessories, ensuring efficiency without compromising performance.
The Ditec NEOS Green offers you an advanced control panel for more precise adjustment of all settings and additional terminals for more convenient wiring operations.
Technical Specifications
| Specification | NEOS 500 G |
| Gate Capacity | Up to 500 kg |
| Stroke Control | Virtual encoder |
| Maximum Stroke | 20 m |
| Duty Class | Heavy duty |
| Intermittent Operation | S2 = 30 min; S3 = 60% (T=25°C) |
| Cycles per Hour | 26 (T=25°C) |
| Continuous Cycles | 22 (T=25°C) |
| Power Supply | 230 V AC – 50/60 Hz |
| Motor Power Supply | 24 V DC |
| Power Input | 1.2 A |
| Thrust | 500 N |
| Opening/Closing Speed | 0.1 – 0.25 m/s |
| Manual Release | Key operated |
| Operating Temperature | -20°C to +55°C (or -35°C to +55°C with NIO) |
| Protection Rating | IP24D |

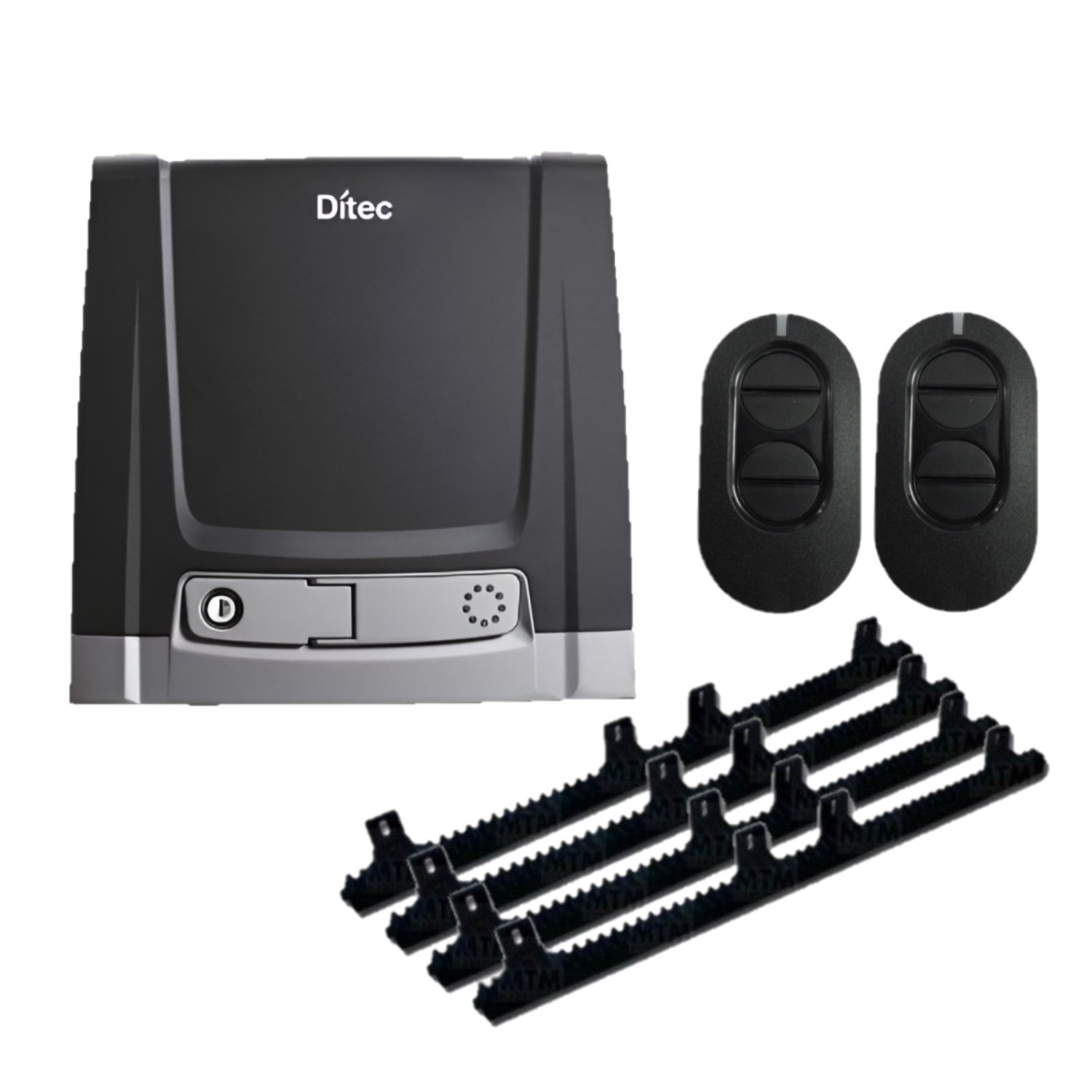

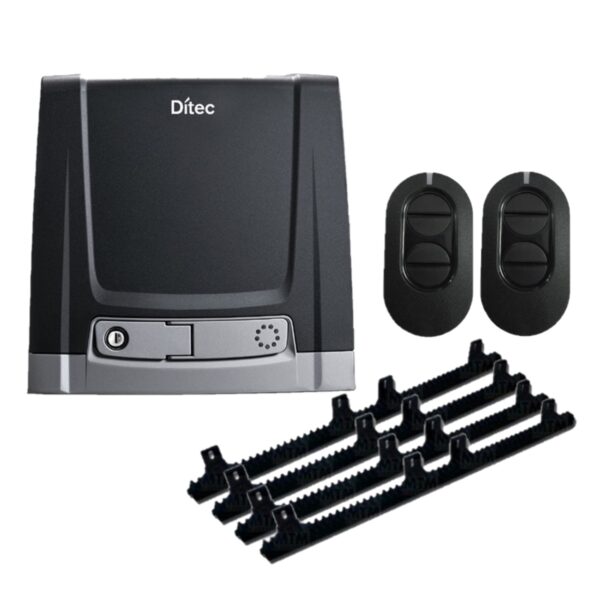

Kit Includes:
- Neos 500 G Slide gate motor
- 2x Remote transmitters
- 4x 1m Length Slide Gate Gear Racks
Additional Nylon Steel-reinforced Gear Rack 1.0m can be purchased here.
