BENINCA BISON35 OTI L Industrial Slide Gate Motor
Shop By Categories
BENINCA BISON35 OTI L Industrial Slide Gate Motor
SKU:
BISON35OTIL
Beninca
$ 3,295.00
Secure Payment
Details

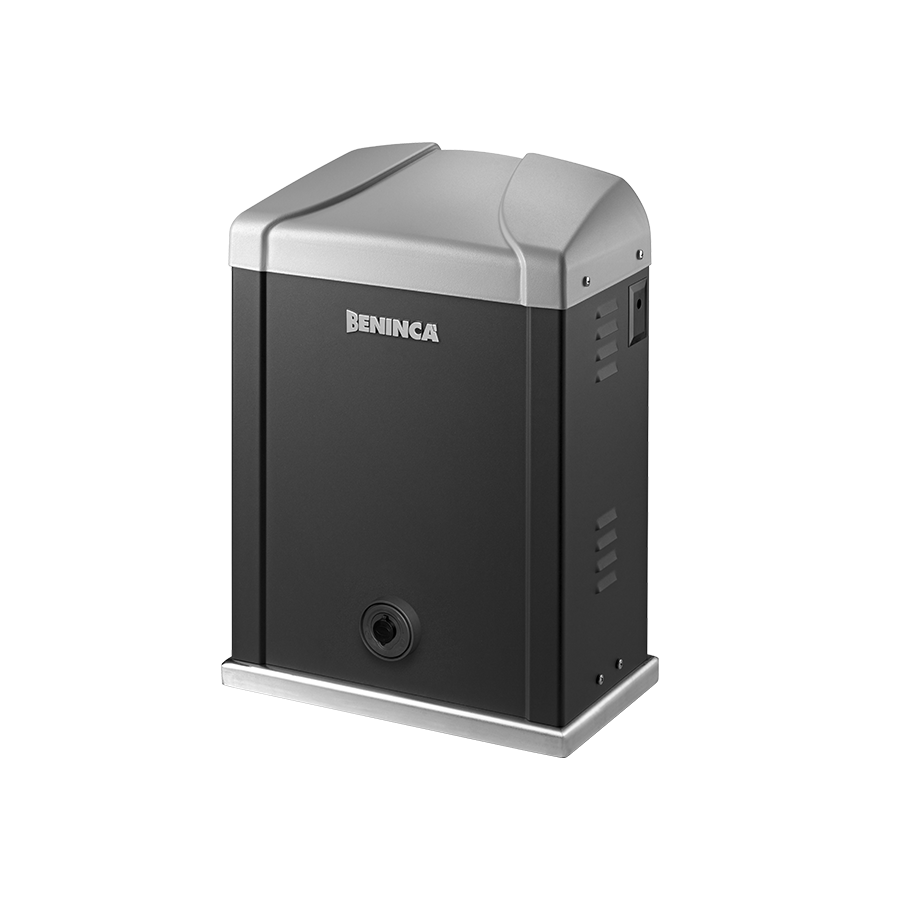

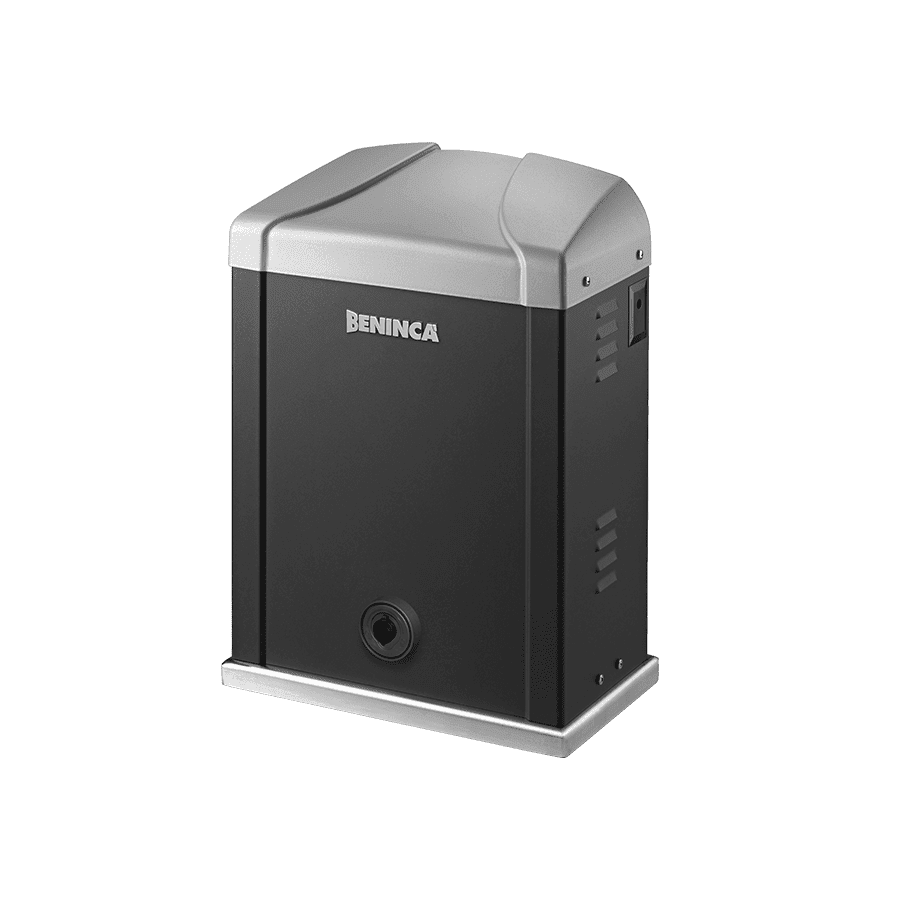

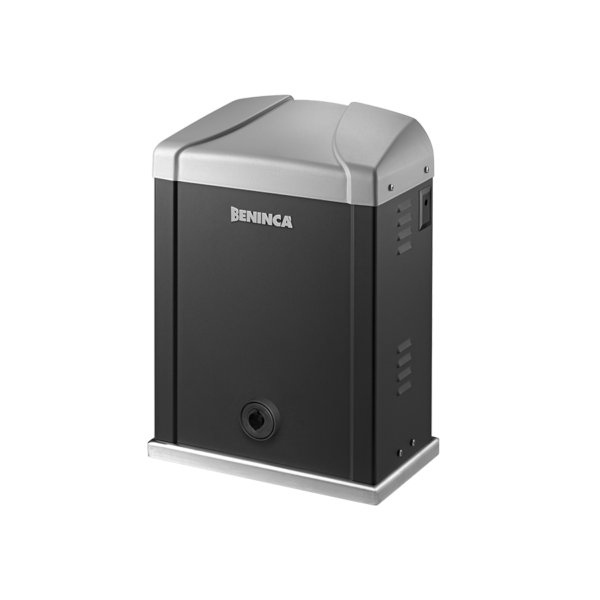

BISON35 OTIL Industrial Slide Gate Motor
230 Vac gear motor for intensive use with integrated control unit, encoder and inverter
• Electromechanical three‑phase gear motor for connection to single‑phase mains
• Ventilated design suitable for intensive use
• Encoder device ensures precise control during all gate movement phases
• Full‑metal mechanics with oil lubrication for maximum efficiency, even at low temperatures
• Protective casing treatment and durable paint finish
• Inverter technology enables more precise adjustment of gate movement and enhances crush‑prevention safety
| Power supply | 230 Vac (50-60Hz) |
| Motor supply | 230 Vac |
| Max absorbed current | 8A |
| Maximum thrust | 2500 N |
| Opening speed | 10.5 m/min |
| Duty cycle | intensive use |
| Protection level | IP44 |
| Pinion for rack | M6 Z13 |
| Operating temperature | -20°C /+50°C |
| Lubrication | OIL |
| Maximum gate weight | 3500 kg |
| Weight | 51 kg |
Contains:
- 1x BISON35 OTIL slide gate motor
- 2x Transmitters
Optional Accessories:
- Steel Gear Rack
- Foundation Plate (available on request)
