Nice Single Leaf HoppKit HO7124

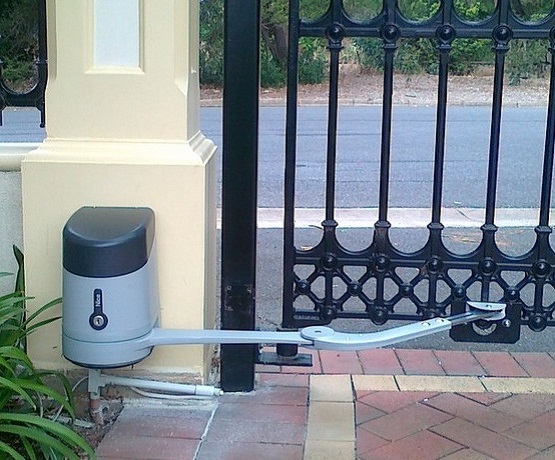

For swing gates with leaves up to 2.4m, ideal for large columns. Irreversible electromagnetic 24 vdc gear motor with articulated arm, surface mounted. Ideal for intensive use
Features & Benefits:
- Irreversible 24Vdc with micrometric adjustment mechanical stops on opening and closing with built-in control unit.
- Powerful: thanks to the 250Nm torque
- Resistant and compact: 180mm in width, ideal for any kind of post. Small shockproof body with aluminium base.
- Sturdy aluminium anti-shearing arm
- Easy to install: thanks to the new fixing bracket with quick connector for the motor. No welding required.
- Sophisticated electronics with the built-in control unit, just 3 keys to manage all programming operations:
- Obstacle detection and possibility of connecting to 8.2KOhm sensitive edge fototest
- Automatic fault diagnostics
- Memorisation of opening and closing travel limits in self- learning mode
- Deceleration on opening and closing
- Clutch with anti-crushing safety mechanism
- Energy saving with no blackouts: 3 standby modes to reduce mains consumption or battery power consumption if connected to the Solemyo Kit. Operation in the event of a power failure thanks to the optional batteries (PS124)
- Everything under control: thanks to compatibility for operation with Opera system BUS T4, the unit can be used to expand the options of programming, control and diagnostics of the automation on site and remotely.
Kit Contains:

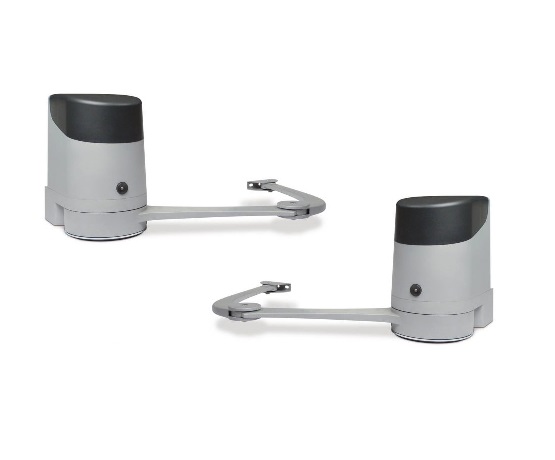

- HO7124 – 1 surface-mounted electromechanical gear motors with control unit and OXI plug-in receiver.

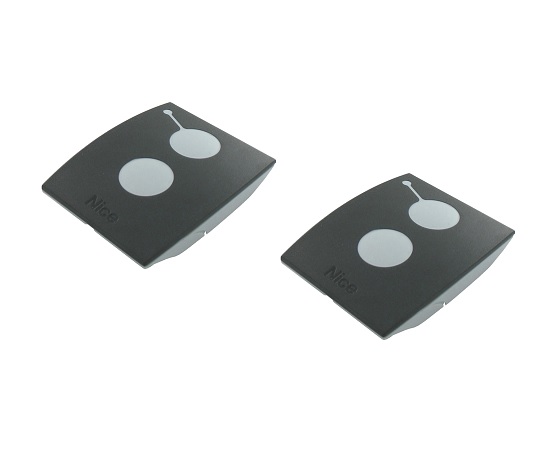

- ON2 – 2 transmitter 433.92 MHz, 2 channels.
Technical Specifications:
| Code |
HO7124 |
| Electrical data | |
| Power supply (Vac 50/60Hz) |
230 |
| Absorption (A) |
1.3 |
| Power (W) |
280 |
| Built-in capacitor (?F) |
– |
| Performance data | |
| Speed (m/s) |
1.68 |
| Torque (Nm) |
250 |
| Work cycle (cycles/hour) |
35 |
| Dimensional and general data | |
| Protection level (IP) |
54 |
| Working temp. ( °C Min/Max) |
-20 ÷ +50 |
| Dimensions (mm) |
252x180x290h |
| Weight (kg) |
9 |
