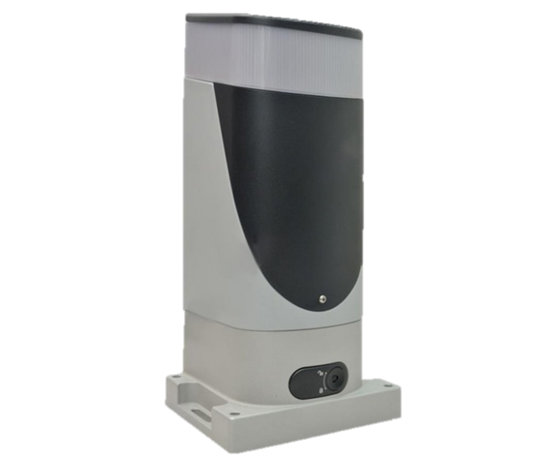

Nice SLIGHT 400 Slide Gate Motor Kit

For sliding gates weighing up to 400 kg.

Features & Benefits:

Compatible for operation with Solemyo and Opera systems.

User-friendly: the Nice BlueBUS technology, enables to power and control a maximum of seven couples of photocells from the MoonBus series using two wires only.
Practical: the control unit and PS124 buffer battery (optional) can be connected by means of a simple connector and can be housed directly inside the motor.
Advanced: SLH400 is equipped with a temperature sensor: adapt the motor power to the climatic conditions and at the same time thermal cut-out. A master/slave selection automatically synchronises two motors. This means it is possible to automate 2-leaf sliding gates set opposite each other.
Intelligent: thanks to the obstacle detection system and automatic programming of the working times. Self-diagnosis by means of a flashing light. 8 programming levels.
Safe: acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre.
Sturdy: base and release in pressure die cast with easy to open handle.
Very quiet: gear motor on bearings.

Kit Contains:

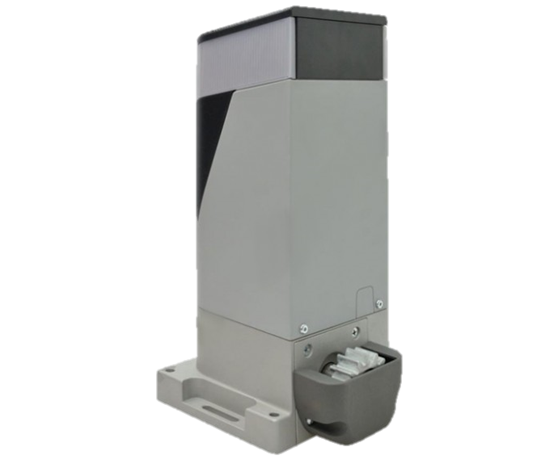

SLH400 – 1 irreversible electromechanical gear motor, with incorporated control unit and OXI plug-in receiver which can be used for connections via Nice Blue BUS
FLOR2R-S – 2x transmitter 433.92Mhz, 2 channel
4.0m Nylon Steel-reinforced gear rack
Additional Nylon Steel-reinforced Gear Rack can be purchased here.

Optional Accessories

– Photocell

Technical Specifications

Technical Specifications
Code	RB400
Electrical data
Power supply (Vac 50 Hz)	230
Absorption (A)	1.1
Power (W)	250
Built-in capacitor (?F)	–
Performance data
Speed (m/s)	0.34
Force (N)	400
Work cycle (cycles/hour)	35
Dimensional and general data
Protection level (IP)	44
Working temp. ( °C Min/Max)	-20 ÷ +50
Dimensions (mm)	191x198x408 h
Weight (kg)	8
