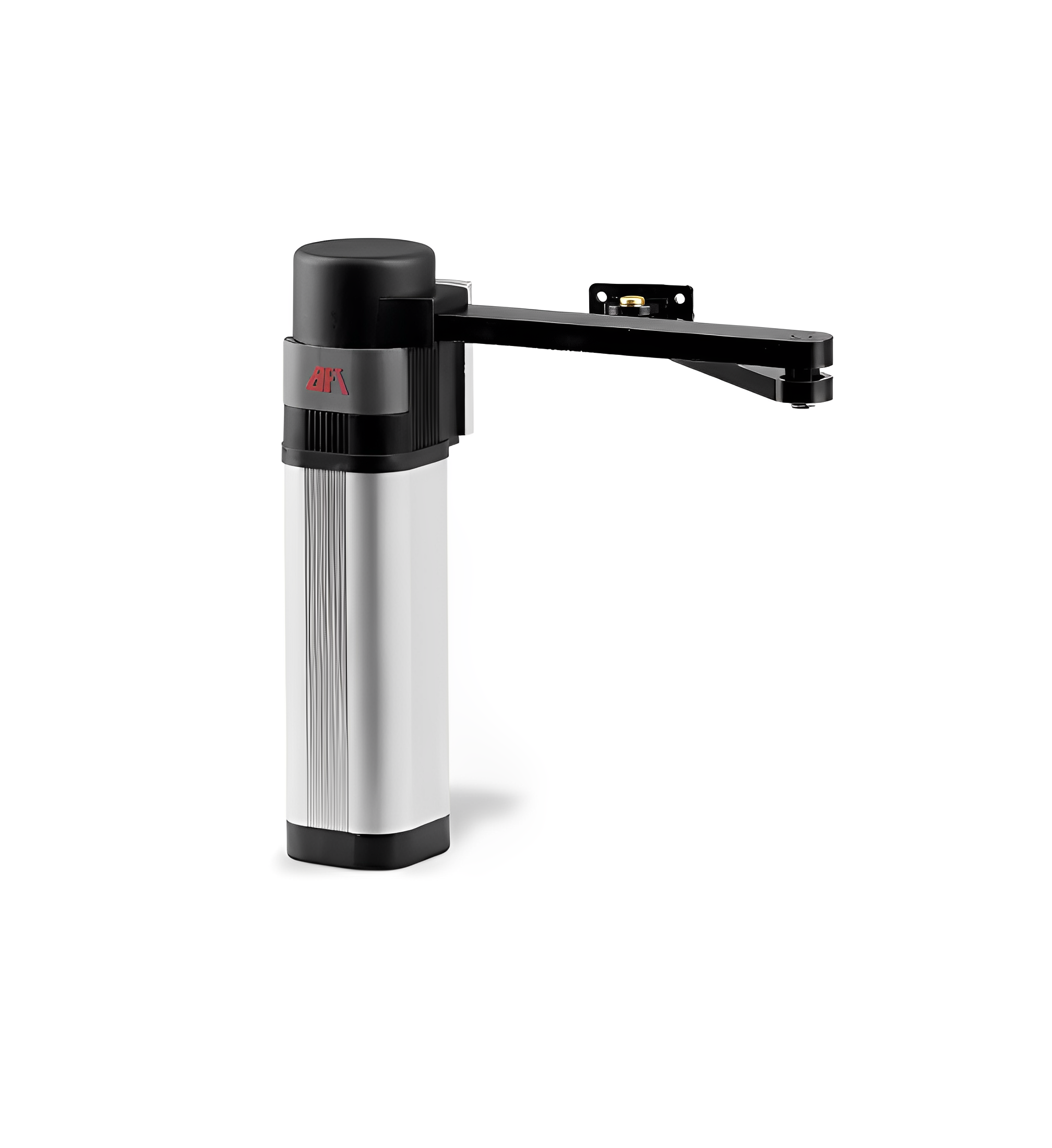

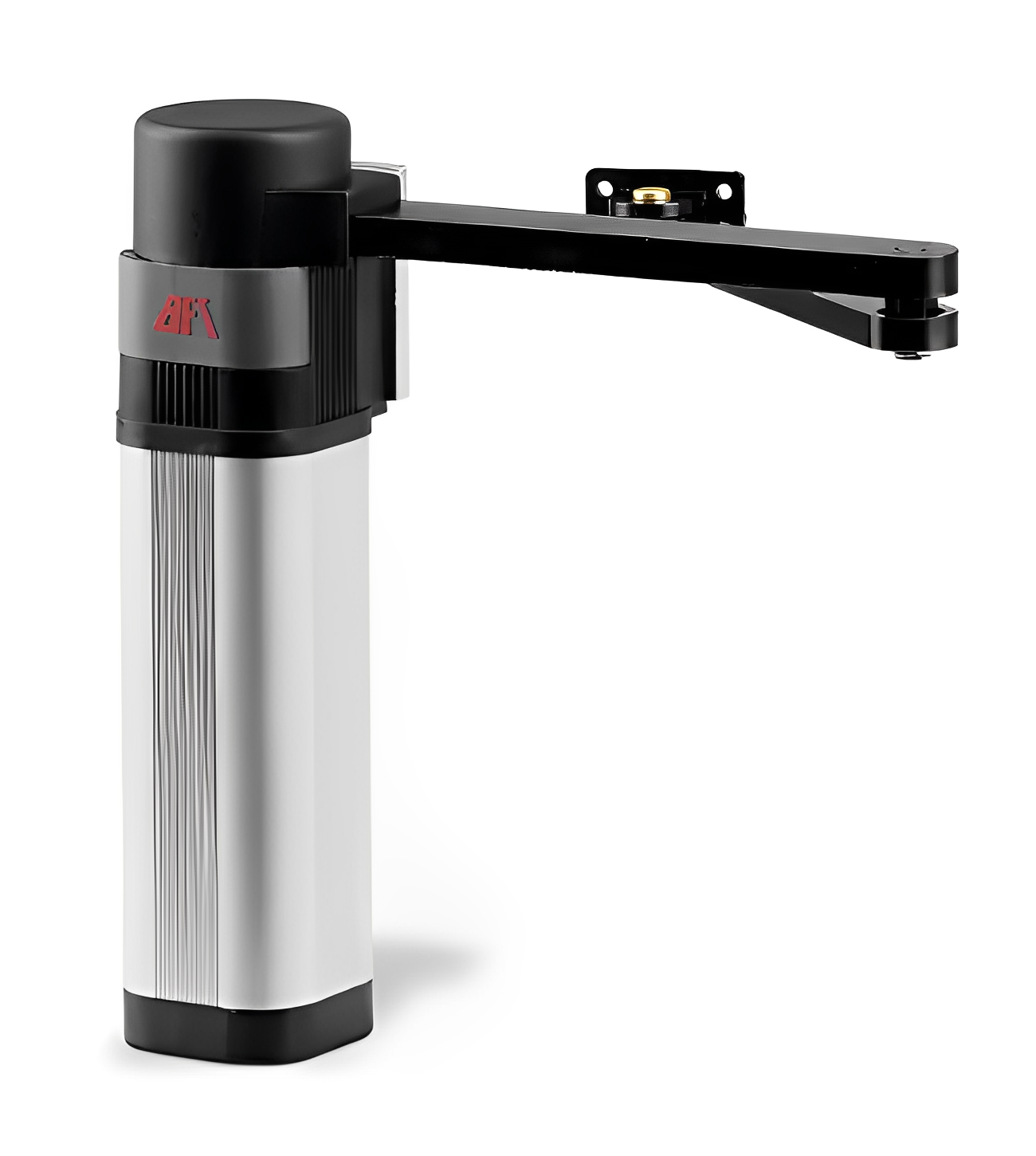

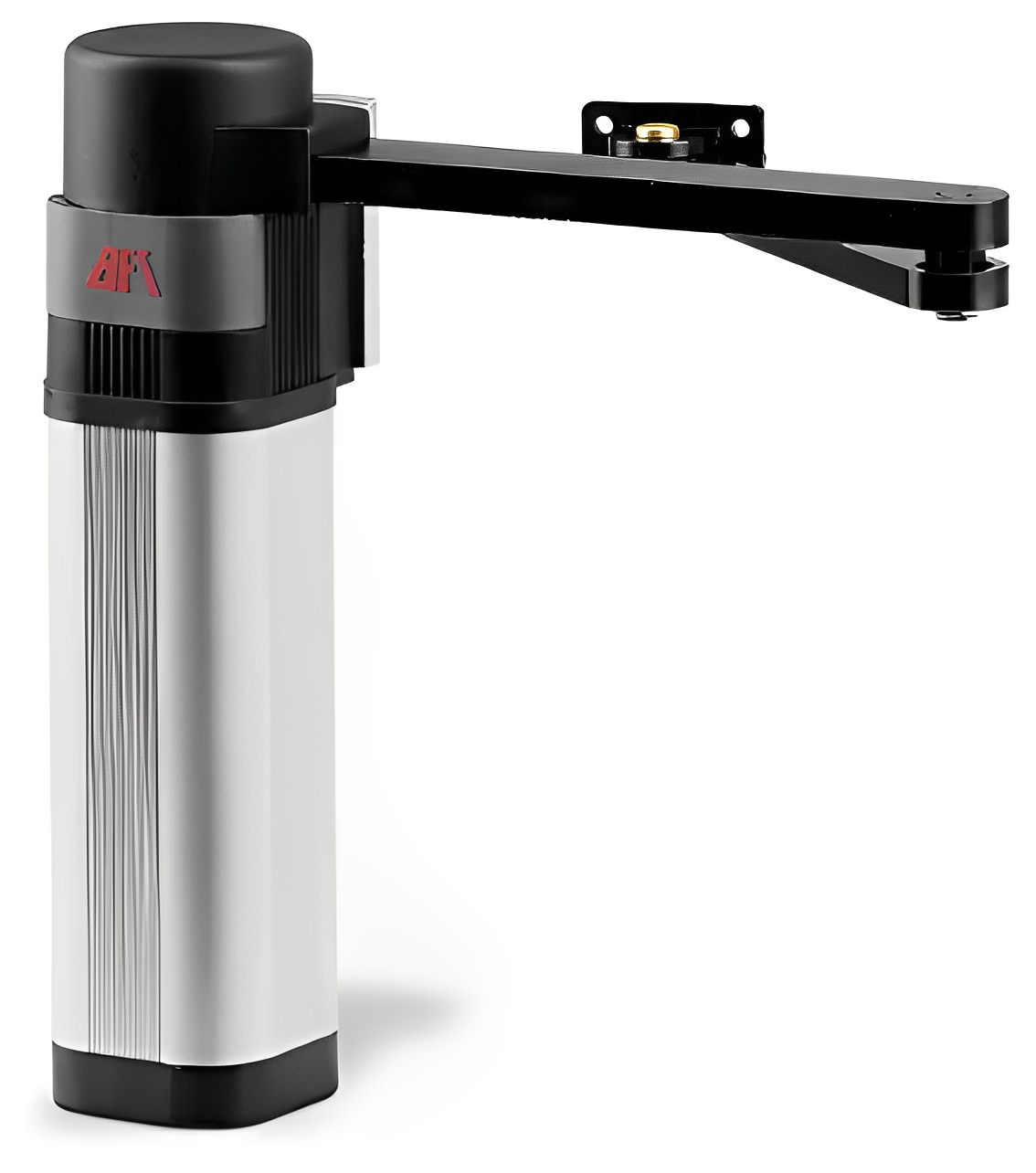

BFT E5 BT A12 24V Single Swing Gate Opener Motor Kit
24V reversible electromechanical operator for swing gates for pedestrian and vehicular access, for use in homes and apartment buildings. Its small size means i can be installed on small pillars and columns (minimum width required 8cm). The slide arm option means constraints such as walls and obstacles close to the operator can be overcome. The slide arm option means constraints such as walls and obstacles close to the operator can be overcome. The limit switch function is regulated by the absolute encoder. The safety of the operator is guaranteed thanks tor the D-track system which precisely determines the position and force with which the gate moves, using friction inside the operator and the new articulated and slide arms with anti-shear design.
Kit Includes:
– 1 x BFT E5 BT A12 Gate Operator With Articulated Arm
– 1 x BFT Remote Control
Features:
– Easy Assembly
– U-Link Technology
– Dynamic Path Tracking
– Push & Go Button
– Fast Speed
Technological Specifications:
| Control Unit | Thalia |
| Board Power Supply | 230V |
| Motor Voltage | 24V |
| Power Consumption | 100W |
| Max. Width of Door/Gate Wing | 1.2m |
| Max. Weight of Door/Gate Wing | 80Kg |
| Cycle Time | 6.5s |
| Type of Limit Switch | Absolute Encoder |
| Release | Reversible |
| Impact Reaction | D-Track |
| Frequency of Use | Very-Intensive |
| Protection Rating | IP44 |
| Environmental Conditions | -20 To +55 Deg C |
